컴퓨터구조) 02 Instructions: Language of the Computer

Introduction

• The words of a computer’s language are called instructions
  • Its vocabulary is called an instruction set
    • High-level language program, Assembly language program, Binary machine language program
  • Instruction is the basic command
  • Instruction consists of
    • Opcode (operation code) : what the instruction does
    • Operands: the object of an operation
    • ex) add 2 4 2, add - opcode, 2, 4, 2 - operand
  • Instruction set architecture (ISA) is a set of instructions that processor understands
    • Different processors have different instruction set architecture
    • However, they are similar across different processors because
      • 1. Similar hardware technology based on similar principles
        1. A few common and basic operations that all computers must provide
  • There are many different ISAs
    • ARM: ARMv7, ARMv8
    • Sun SPARC
    • IBM POWER
    • MIPS
    • RISC-V *
    • Intel: x86, lA-64
• Microarchitecture
  • Microarchitecture is implementation of the ISA under specific design constraints and goals
  • Implantation can be various as long as it satisfies the specification (ISA)
  • Anything done in hardware without exposure to software
    • Pipelining
    • Speculative execution
    • Memory access scheduling
    • Arithmetic units



CISC (Complex Instruction Set Computer)

• CISC (Complex instruction set computer)
  • Older design idea
  • Complex and variable length instructions
  • Many powerful instructions supported within the ISA
• Pros
  • Makes assembly programming much easier → Compiler is also simpler
  • Reduced instruction memory usage
• Cons
  • Designing CPU is much harder



RISC

• New concept than CISC
  • Simple, standardized instructions
  • Small instruction set: CISC type operation become a chain of RISC operations
  • ex) ARM, MIPS, SPARC, RISC-V
• Pros
  • Easier to design CPU
  • smaller instruction set → higher clock speed
• Cons
  • Assembly language typically longer (compiler design issue)
  • Heavy use of memory (메모리 많이 사용)



RISC - V

• RISC - V is an open standard ISA based on RISC principles
• Fifth RISC ISA design developed at UC Berkeley
• Typical of many modern ISAs
• Similar ISAs have a large share of embedded core market



Operands of the Computer Hardware

• The RISC-V assembly language notation
  • add a, b, c → a = b+c
• All RISC-V arithmetic operations have this form
  • Three variables: two sources and one destination
• If we want to place the sum of four variables b,c,d and e into variable a? →Three instructions are required
  • add a, b, c. // The sum of b and c is placed in a a = b+c
  • add a, a, d // The sum of b,c, and d is now in a a = a + d —> a = b+ c + d
  • add a, a, e // The sum of b, c, d, and e is now in a a = a+e → a = b +c+d+e
• Design Principle 1: Simplicity favors regularity
• Arithmetic instructions use register operands
  • Registers are primitive storage used in hardware design
• RISC-V has 32 X 32-bit register file : x0~x31 // register (cpu안에 있어서 매우 빠름)
• Design Principle 2 : Smaller is faster
  • A large number of register may increase the clock cycle
  • Tradeoff between the number of registers and performance



Memory Operands (레지스터 ≠ 메모리)

• Main memory used for composite data, such as arrays and structures
  • Register are limited and so can NOT accommodate those composite(합성의) data
• Since arithmetic operations in RISC-V occurs only on registers, to apply these operations with the complex data in memory
  1. Load values from memory to register (메모리에서 레지스터로 값을 가져옴)
  2. Store result from register to memory (레지스터의 값을 메모리로 저장)
• Data transfer instructions are used to transfer data between registers and memory



Memory Addressing

• To access a word in memory, the instruction must supply the memory address(메모리에 접근하려면 메모리 주소를 제공해야함)
  • Memory is just a large and single-dimensional array, with the address acting as the index to that array, starting at 0
  • 8-bit bytes are useful in many programs → virtually all architectures address individual bytes
  • The byte address of a word matches the address of one of the 4 bytes within the word
  • Addresses of sequential words differ by 4



Endian

• RISC-V is little endian processor (RISC-V는 소형 endian 프로세서)
  • Least significant byte is at least address of a word
• Little Endian vs Big Endian
  • Big-endian : the most significant byte of data is placed at the lowest address (가장 중요한 주소를 낮은 주소에)
  • Little-endian : the least significant byte of data is placed at the lowest address (가장 안중요한 주소를 낮은 주소에)
  • RISC-V does NOT require words to be aligned in memory
    • Words do NOT need to start at address that are multiples of 4



Memory Operand Example

• Compiling Using Load and Store
  • C code:
    • h is associated with register x21
    • A is an integer (4-byte) array and its base address is in x22
  • A[12] = h + A[8];
  • Compiled RISC-V code:add x9, x21, x9 // Temporary reg x9 gets h + A[8] , x9 = x21 + x9
    • lw: load word
    • sw: store word
  • sw x9, 48(x22) // Stores h + A[8] back into A[12]. 48 = 12*4, Memory[x22+48] = x9
  • lw x9, 32(x22) // Temporary reg x9 gets A[8] 32 =8 * 4 , x9 = Memory[x22 + 32]



Register vs Memory

• Registers are much faster to access than memory
• In RISC-V, data in memory can NOT be directly accessed by arithmetic instructions
• Operating on memory data requires loads and stores
• Compiler must use register for variables as much as possible
  • Register optimization is important



Constant or Immediate Operands

• Many times a program will use a constant in an operation
• Constant data can be specified in an instruction in RISC-V
  • addi: addition with immediate value (constant)
  • 4 : immediate value (constant)
• addi x22, x22, 4. // x22 = x22 + 4
• Instruction using the immediate operand are much faster and consume less energy than if constants were loaded from memory
• RISC-V offers the constant zero by dedicating register x0 to be hardwired to the value zero
  • Constant zero is useful for common operations
  • ex) sub x1, x0, x1 → x1 = -x1 , x0은 항상 상수 0만 저장 → 숫자 부호를 바꿀때 자주 사용



Binary Numbers

• Numbers may be represented in any base
• ex) 123 base 10 = 11110111 base 2
• A single digit of a binary number is the “atom” of computing
  • All information is composed of binary digits of bits’
• Generalizing the point, in any number base, the value of (i)th digit d is
• d X Base(i)
• MSB( most significant bit: most left bit), LSB( least significant bit: most right bit) —> endian과는 다름!

Unsigned Numbers

• The RISC-V word is 32 bit long
• 32-bit binary numbers can be represented in terms of the bit value times a power of 2

Signed Numbers

• There are some representation
  • 1. sign and magnitude, 2) 1’s complement, and 3) 2’s complement(2의 보수)
• The final solution is two’s complement representation
  • In 32-bit long, the range is -pow(2,31) ~ pow(2,31)-1
  • MSB is the sign bit

Negation(부정) and Sign Extension

• To negate the number,
  • “~” is complement operator ( converting 0→1, 1→0 for every bit)
  • ex) ~(0001) = 1110
• ~x + 1 = -x
• The sign extension is to represent a number using more bits
  • Preserve the numeric value
• Replicate the sign bit to the left
  • +2 : 0000 0010 → 0000 0000 0000 0010
  • -2 : 1111 1110 → 1111 1111 1111 1110
    • 비트가 늘어나면 젤 앞의 sign 비트를 늘림

Representing Instructions in the Computer

• Instructions are encoded in binary, called machine code
• RISC-V instructions
  • Encoded as 32-bit instruction words → Regularity!
  • Small number of format encoding operation code (opcode), register numbers,
  • RISC-V instruction : 32 bits
• The layout of the instruction is called instruction format
  • R-type: most arithmetic and logical instructions (except for “immediate”)
  • I-type: data transfer (load), arithmetic with immediate
  • S-type: data transfer (store)

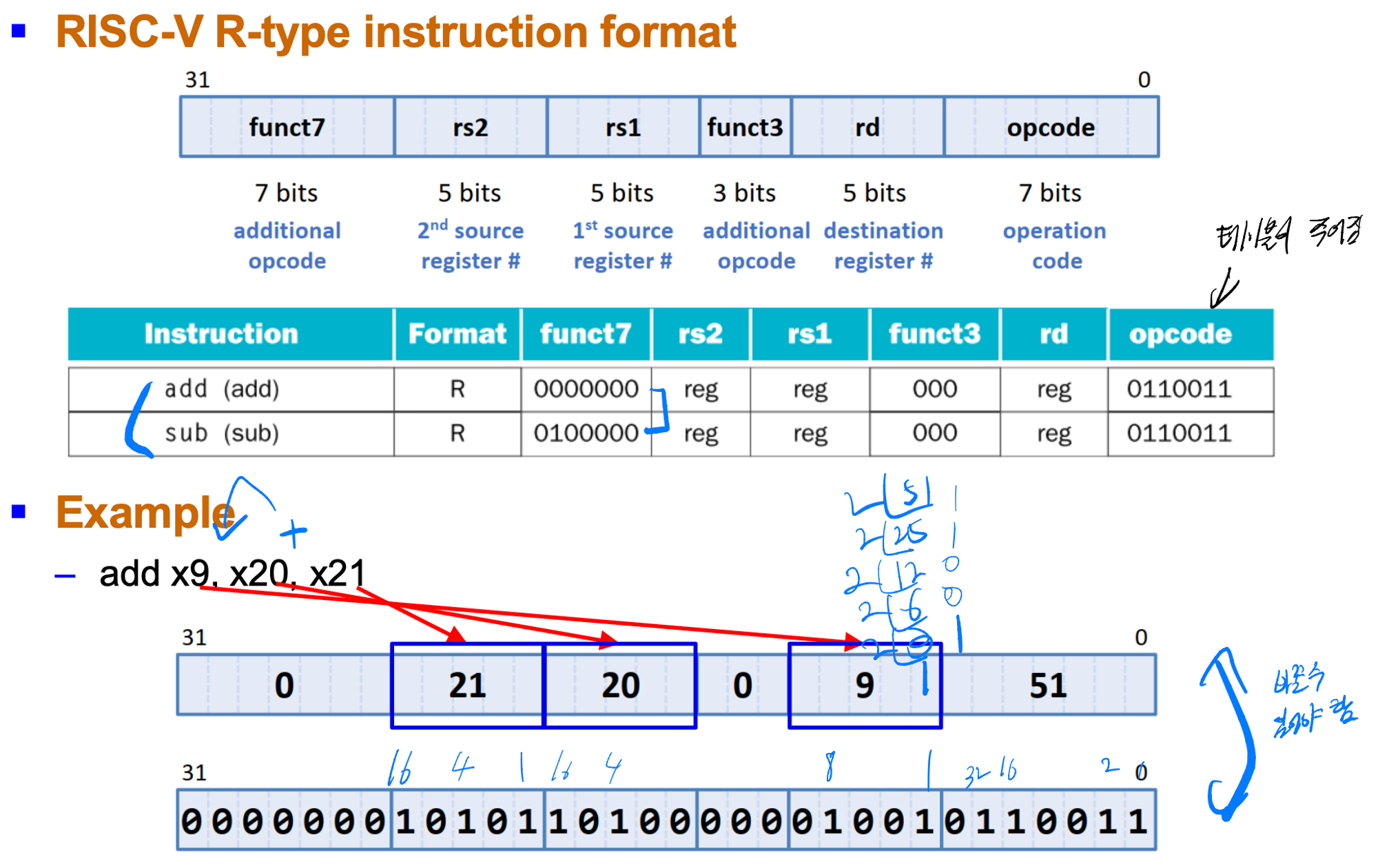

R-type Instructions

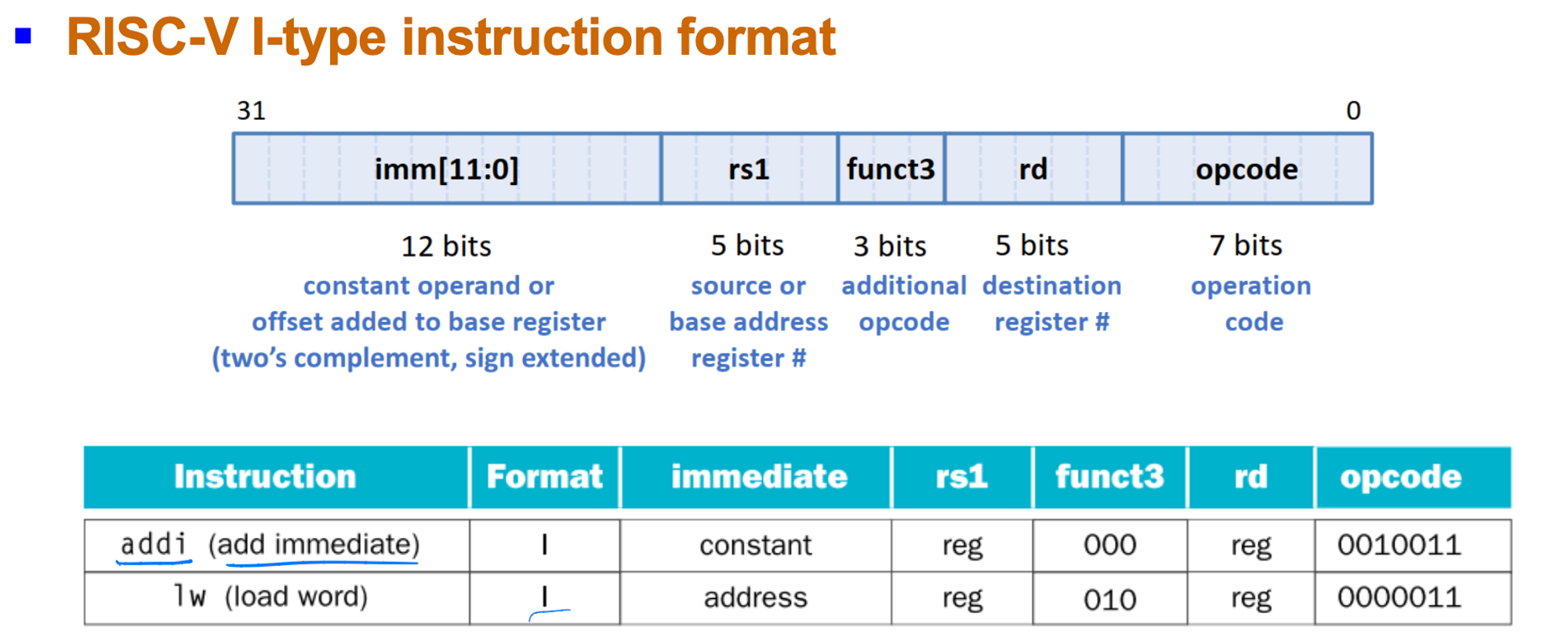

I-type Instruction

• Design Principle 3 : Good design demands good compromises
  • Different format complicate decoding, but allow 32-bit instruction uniformly
  • Keep formats as similar as possible

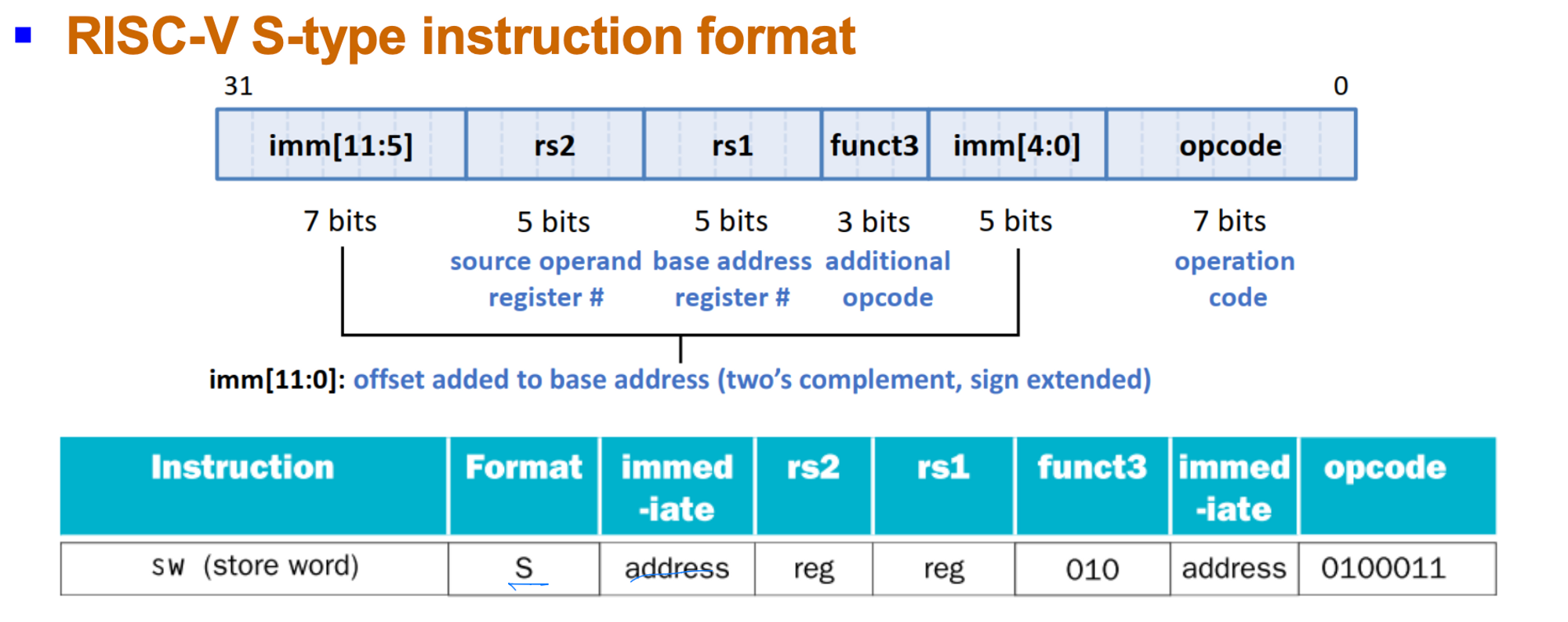

S-type Instructions

• The 12-bit immediate is split into two fields
  • it keeps the rs1 and rs2 fields in the same place in all instruction format
  • Similarly, the opcode and funct3 fields are the same size/place in all locations



Logical Operation

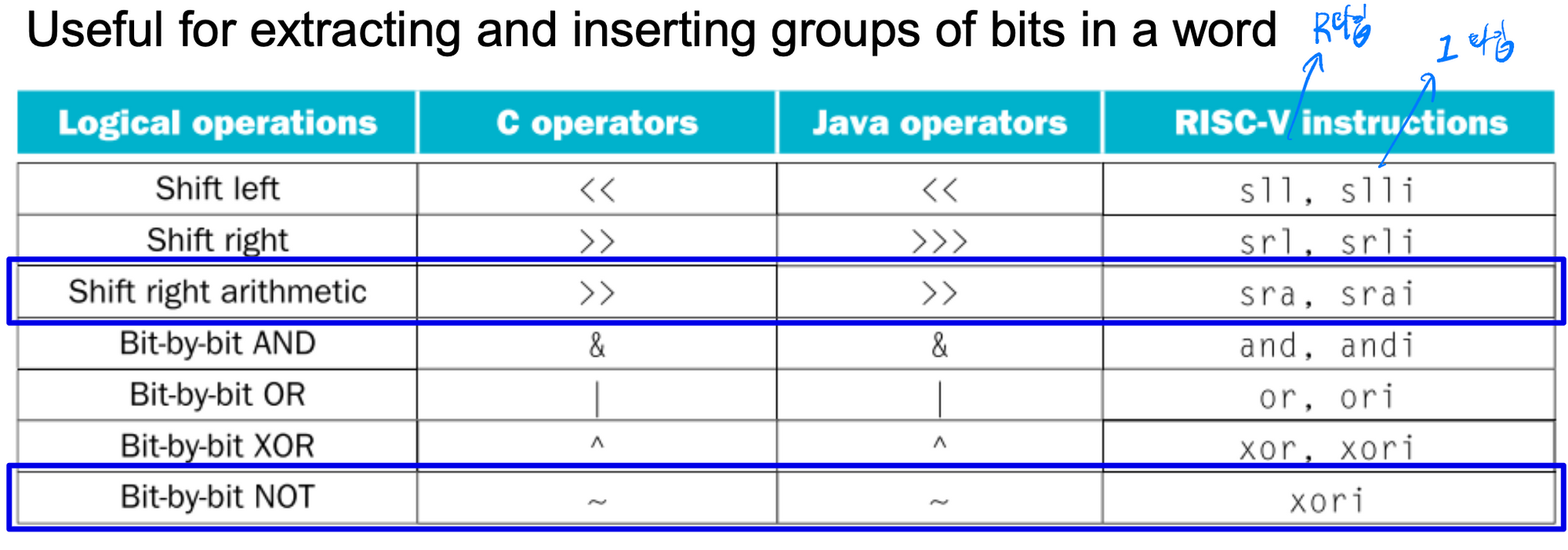

• RISC-V provides instructions for bitwise logical operations

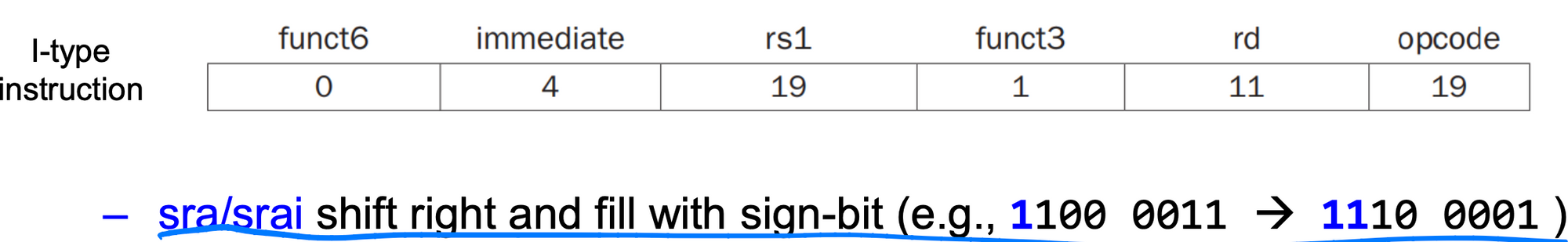

shift right arithmetic과 shift right의 차이(sign extension의 유무), xori 명령어의 중복 (해결)

• Shift instructions allows all the bits in a word to move to the left or right
  • slli x11, x19, 4 // reg x11 = reg x19 << 4 bits



AND/OR Instructions

• AND instruction is useful to mask bits in a word(and, andi)
  • Select some bits, and clear others to 0
  • and x9, x10, x11. // reg x9 = reg x10 & reg x11
• OR instruction is useful to include bits in a word(or,ori)
  • Set some bits to 1, and leave others unchanged
  • or x9, x10, x11 // reg x9 = reg x10 | reg x11

XOR instruction

• XOR instruction allows a differencing operation (xor,xori)
  • 같으면 0, 다르면 1
  • xor x9, x10, x12 // reg x9 = reg x10 ^ reg x12
• In RISC-V, NOT operation can be achieved by XOR instruction
• ex) x9 becomes the inverting of x10 by “x10 XOR 111…1111”

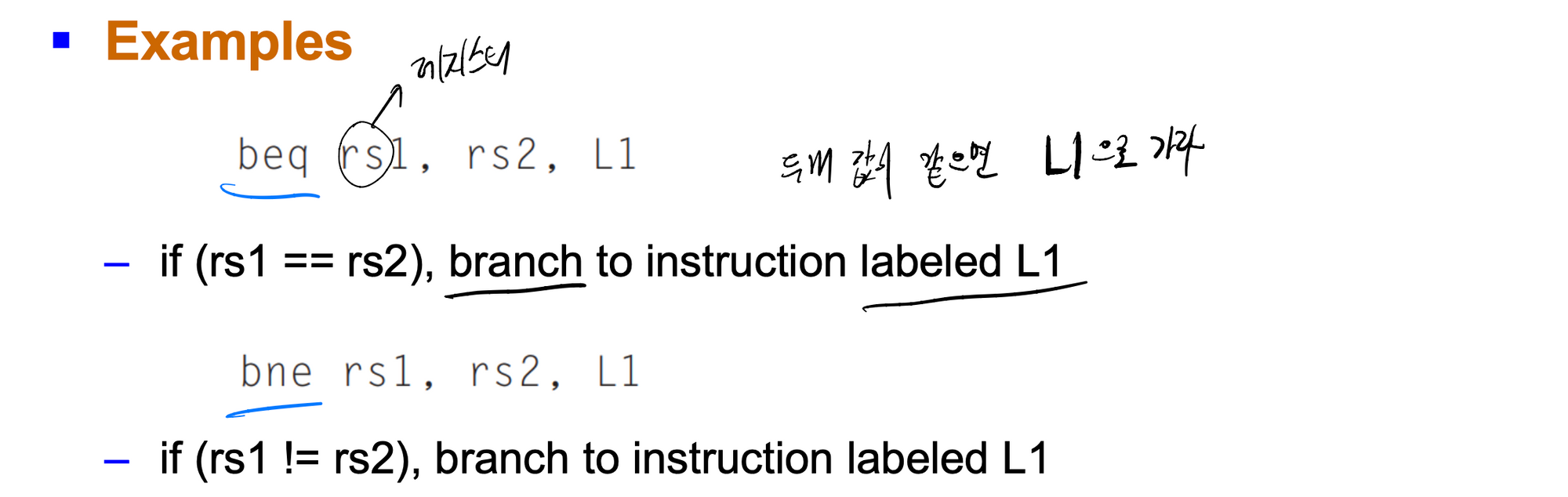

Instructions for Masking Decision

• Branch to a labeled instruction if a condition is true
  • otherwise, continue sequentially

• These two instructions are called conditional branches



Compiling if-then-else into Conditional Branches

if (i == j) f = g+h; else f= g-h;

-f, g, h, i and j correspond to the register x19/20/21/22/23

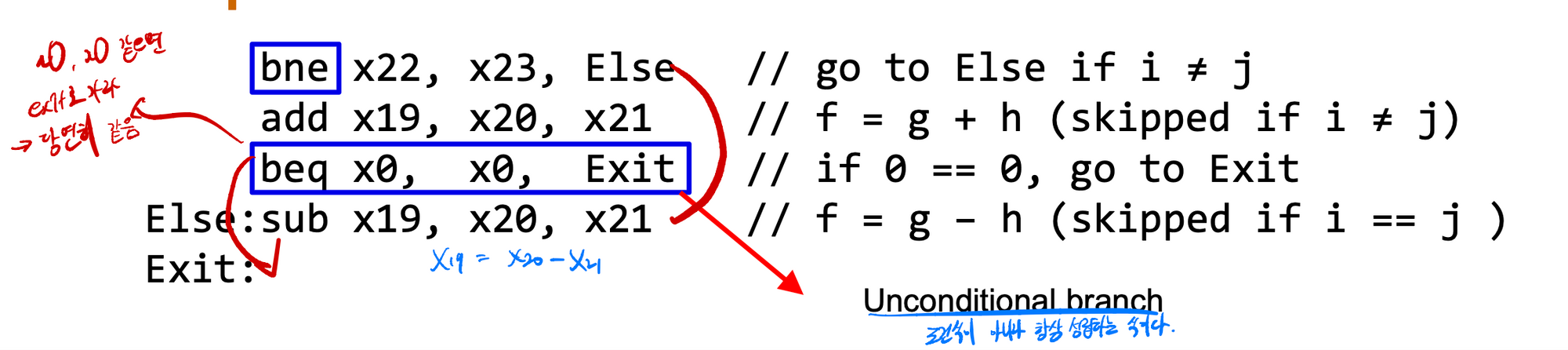

• Compiled RISC-V code



Compiling a while Loop in C

while (save[i] == k) i += 1;

i, k and the base of array save correspond to x22/24/25, respectively

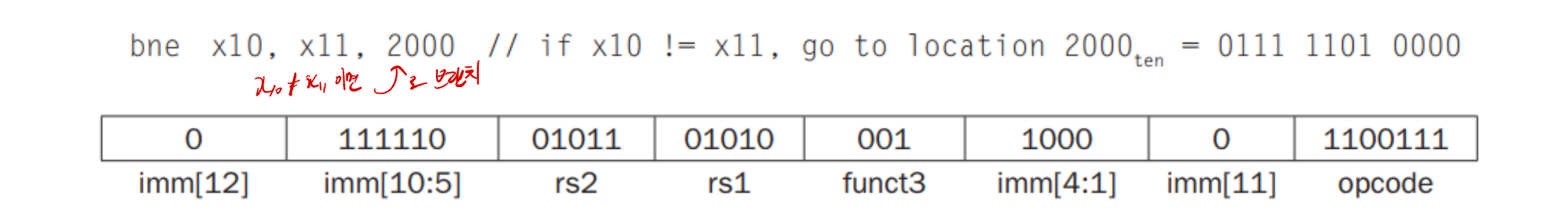

More Conditional Operators

• Branch by comparison (blt/bltu and bge/bgeu)if (rs1 < rs2), branch to instruction labeled L1if (rs1 ≥ rs2), branch to instruction labeled L1
• bge rs1, rs2, L1
• blt rs1, rs2, L1
• Signed and unsigned comparison



Procedure Execution

• The program must follow the six steps in the execution of the procedure
  1. Put parameters in a place where the procedure can access them
  2. Transfer control to the procedure
  3. Acquire the storage resource needed for the procedure
  4. Perform the desired task
  5. Put the result value in a place where the calling program can access it
  6. Return control to the point of origin where the procedure called

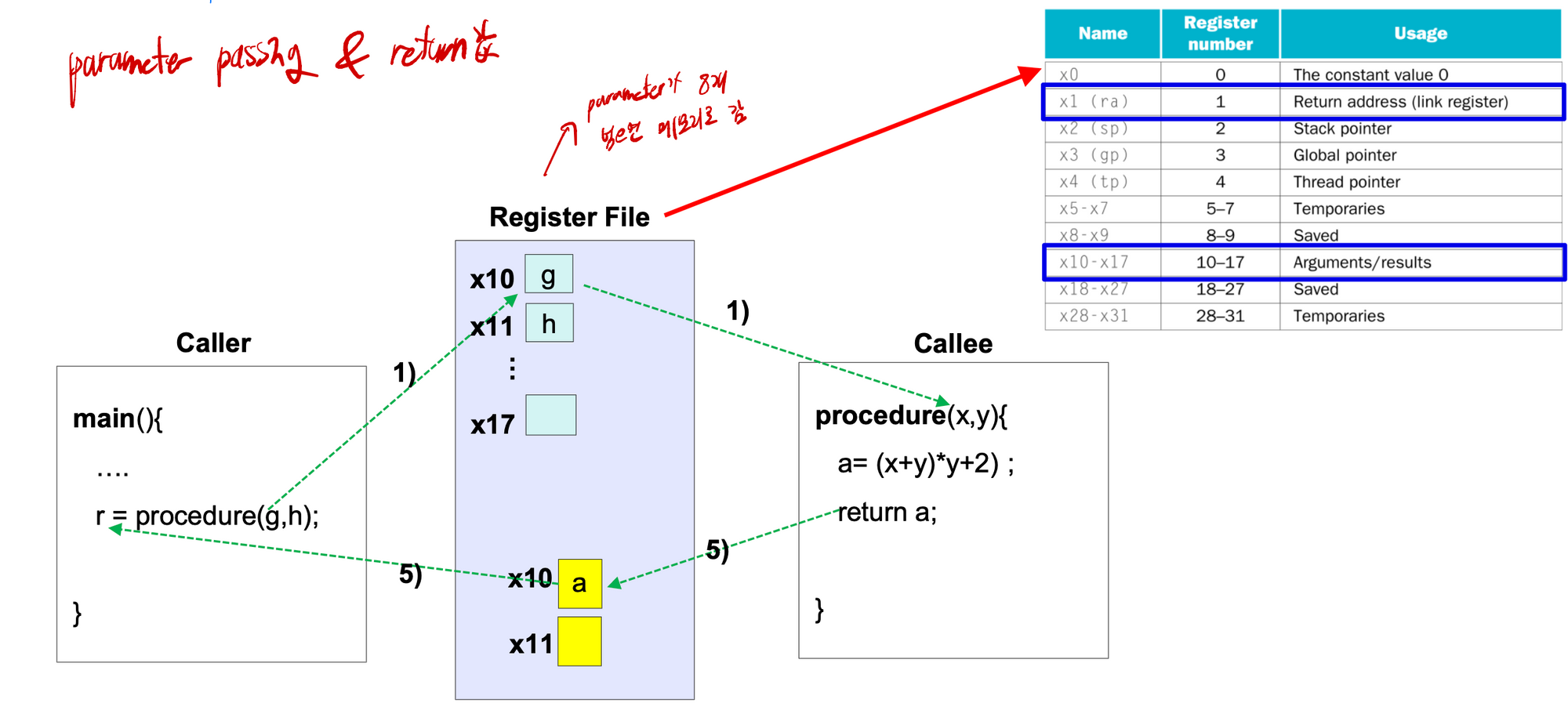

Supporting Procedures in Computer Hardware

• RISC-V allocates the 9 registers for procedure calling
  • x10 ~ x17: eight parameter registers in which to pass parameters or return values
    • x10 and x11 are used to place the results
  • x1: one return address register to return the point of origin

• RISC-V provides an instruction just for the procedures
  • It branches to an address and simultaneously saves the address of the following (next) instruction to the destination register rd

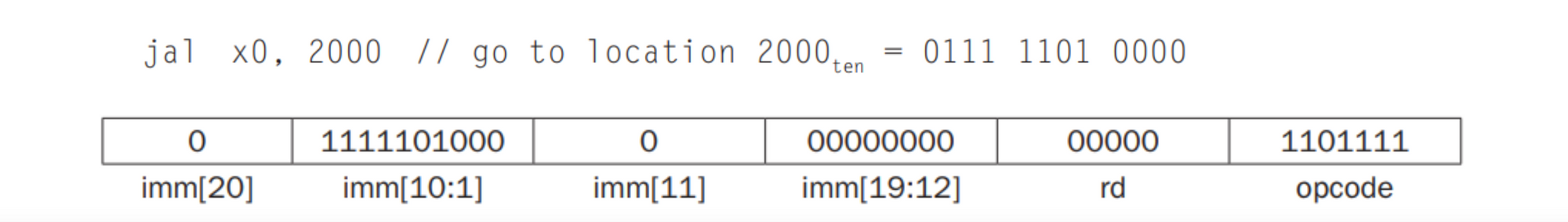

• Jump-and-link instruction (jal) for procedure call
  • jal x1, ProcedureAddress // jump to ProcedureAddress and write return address to x1

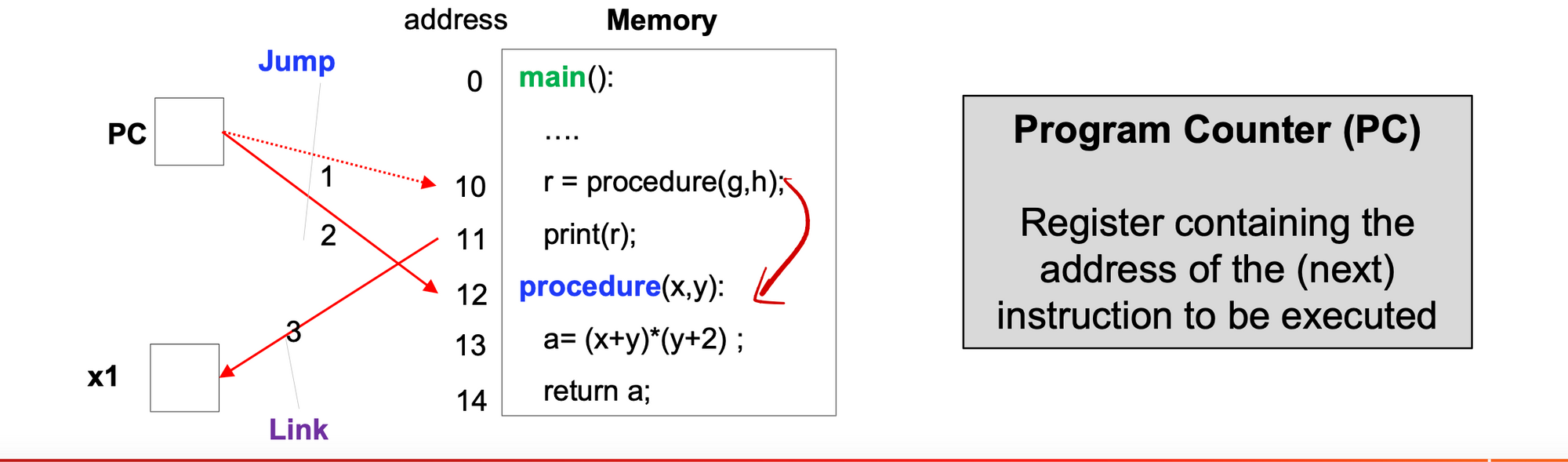

    • Jump: transfer control to the procedure
    • Link: make a link so that control can jump back to the point of origin
      • This link is called the return address and stored in register x1

• RISC-V uses an indirect jump to support the return from a procedure
• Jump-and-link register instruction (jalr) for procedure return
  • jalr x0, 0(x1)
  • Branches to the address stored in register x1 (i.e., 0 + address in x1)
  • Uses x0 as the destination register → the effect is to discard the return address



Using More Register

• if a procedures uses more than eight arguments and two return values, “memory” is required to store the extra arguments and return values
• To execute a procedure, we need to move the caller’s local value in registers to the memory due to the limited number of registers
  • Register spilling: save values from the registers to memory

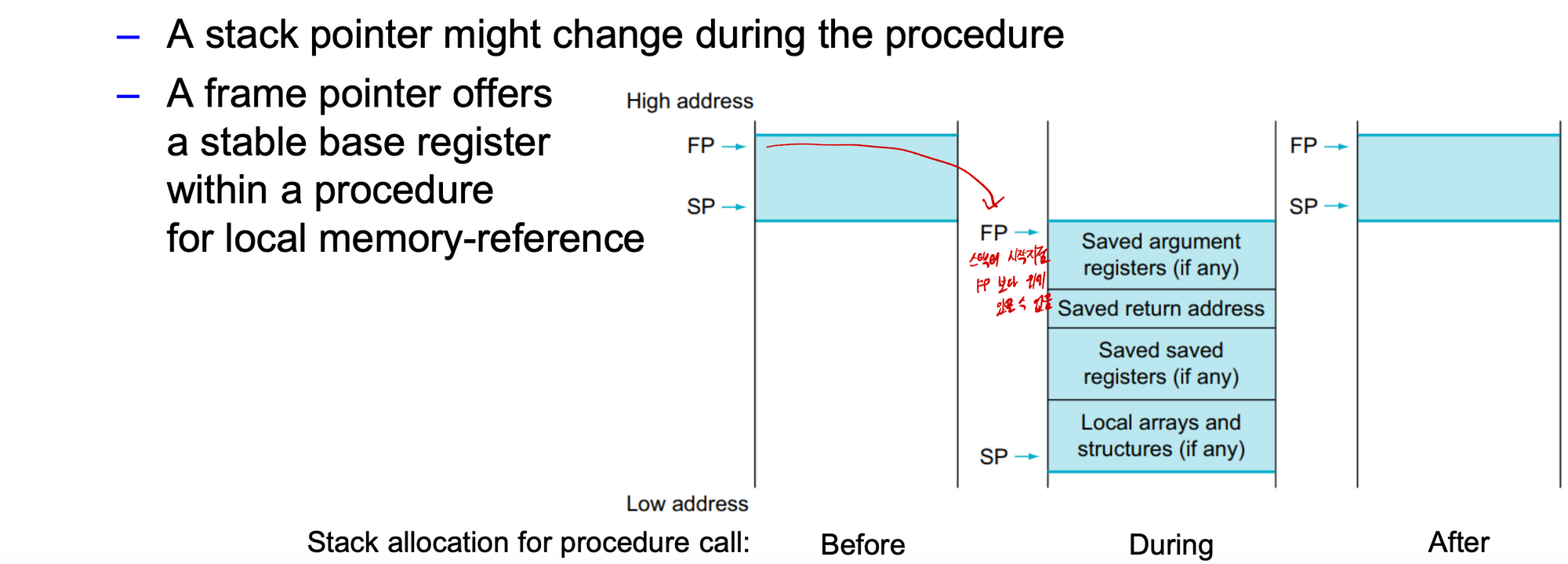

• The ideal data structure for spilling registers is a stack
  • Stack is a last-in-first-out queue
  • No explicit push and pop operations
  • Load and store instructions are used to access the stack in memory

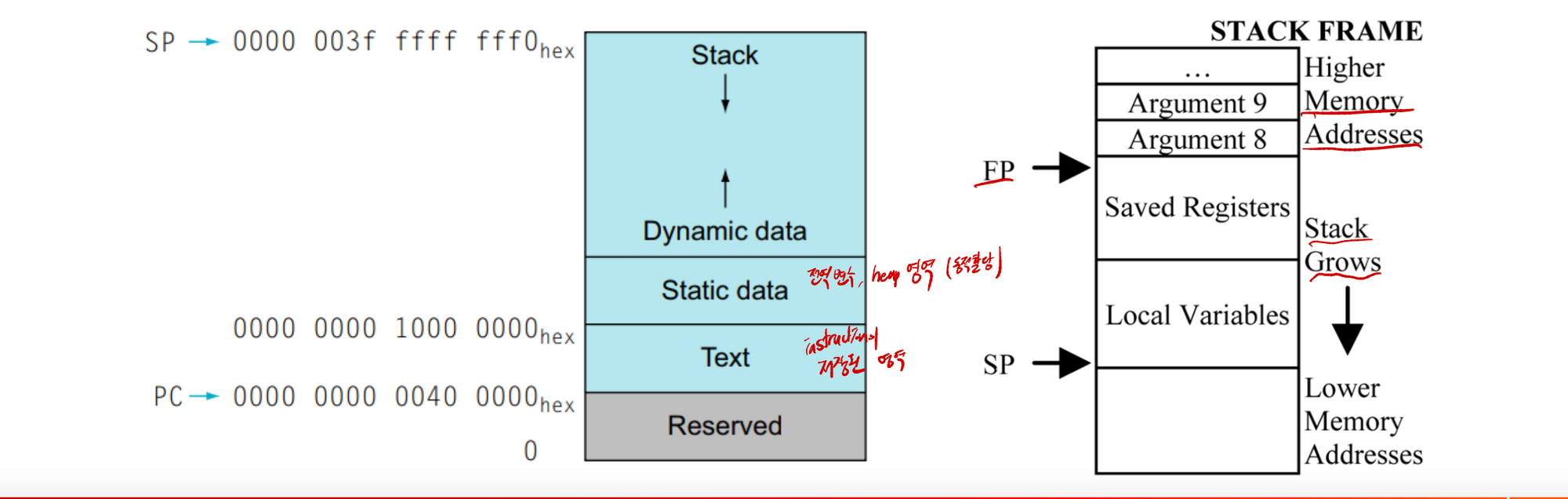

• Stacks grow from higher to lower address
  • in RISC-V, the stack pointer is register x2 (named sp)
  • The stack pointer is adjusted by one word for each register that is saved (push) and restored (pop)

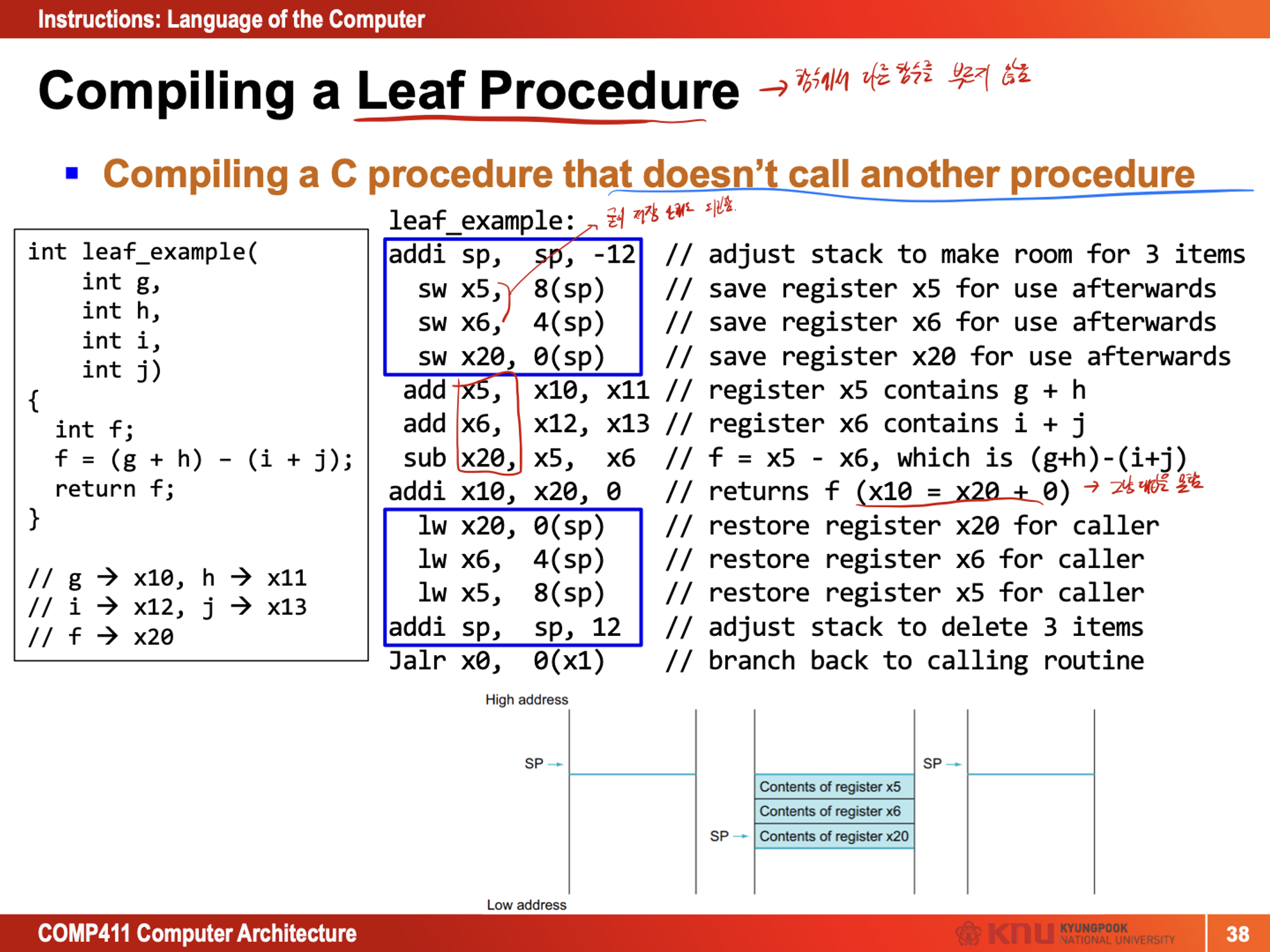

Compiling a Leaf Procedure (함수에서 다른 함수를 부르지 않음)

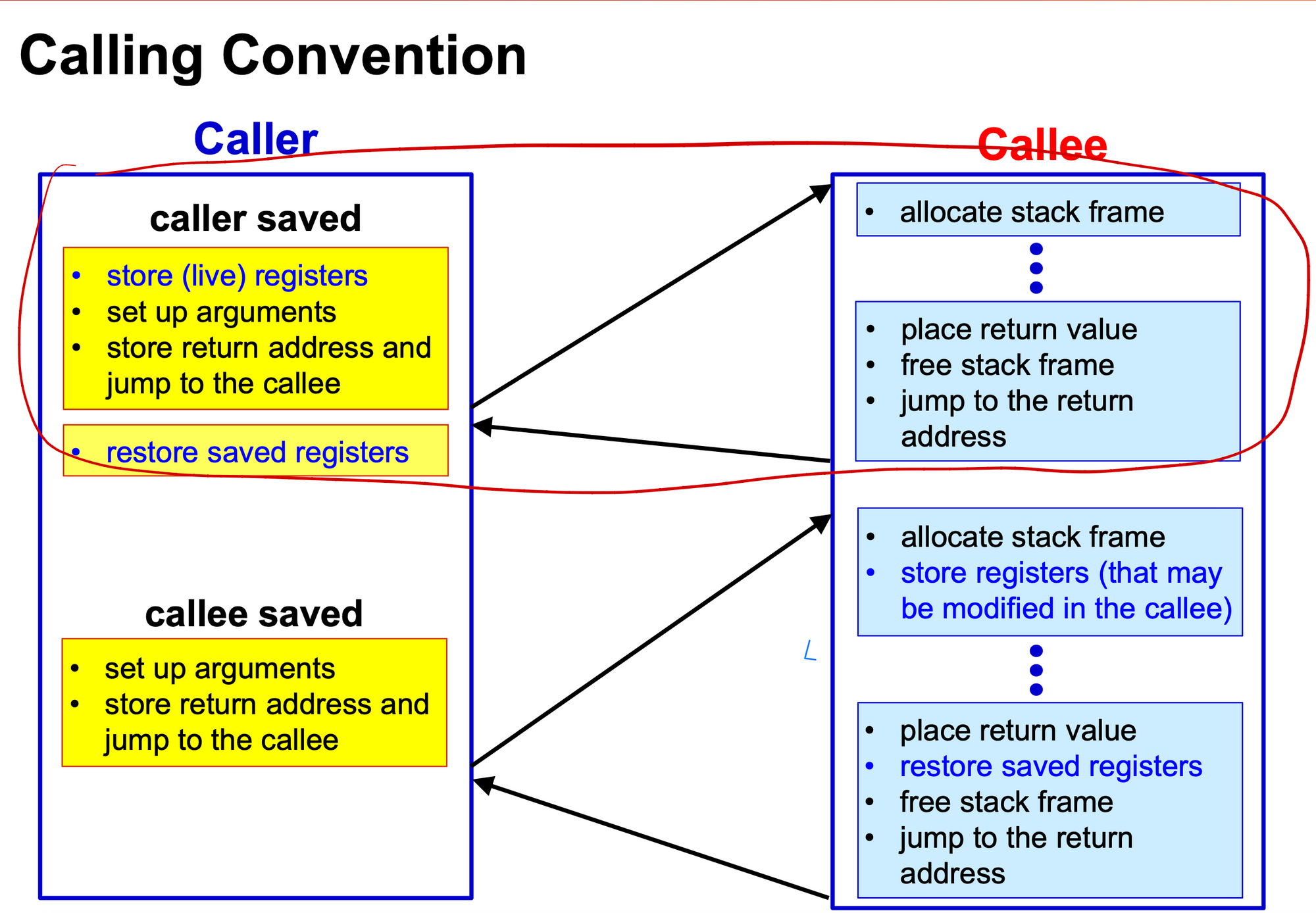

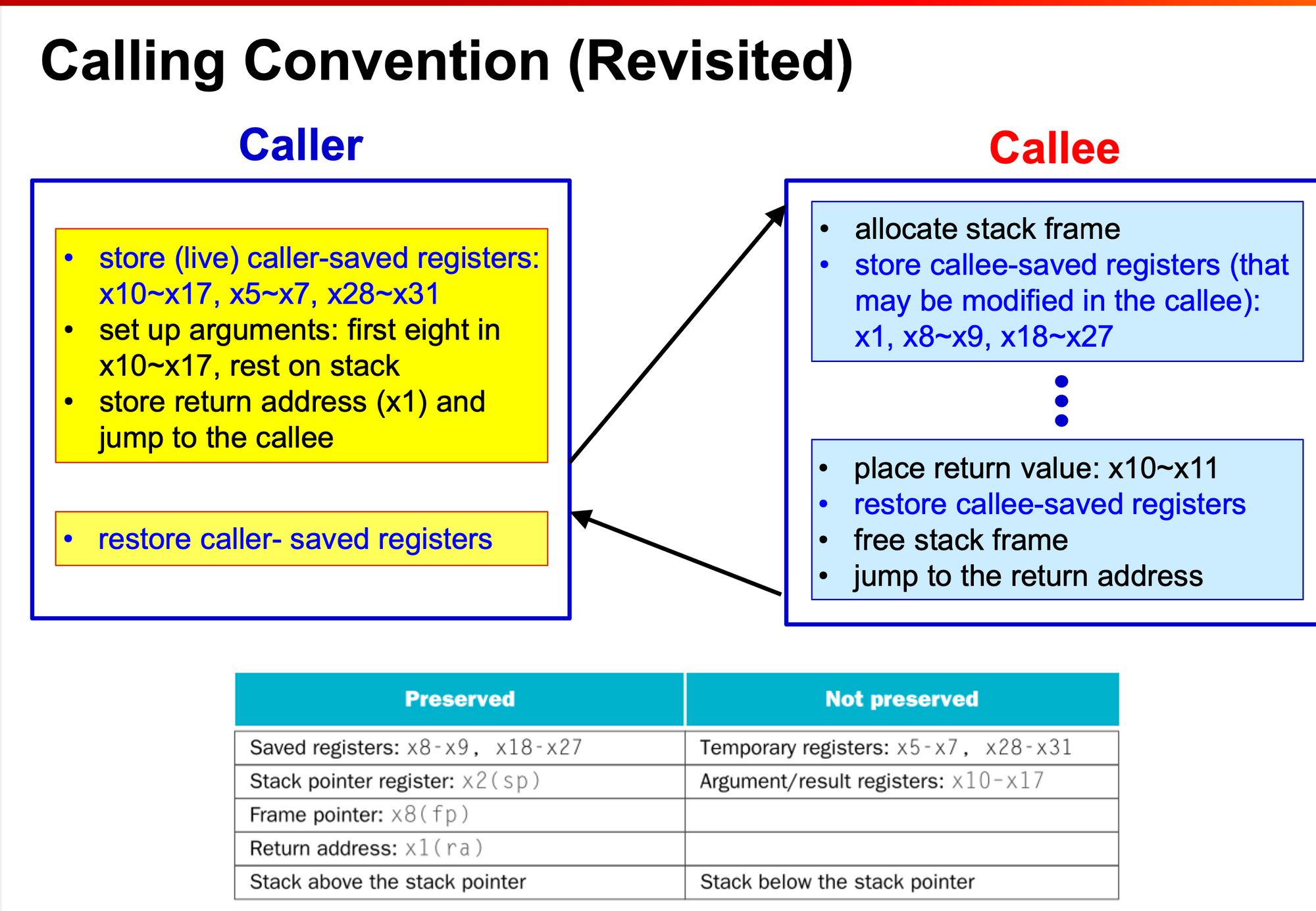

Register Saving Convention

• To avoid saving and restoring a register whose value is never used, RISC-V separates 19 of the registers into two groups
• Caller saved registers
  • x5~x7 and x28~x31: temporary registers that are NOT preserved by the callee on a procedure call
  • Caller saves temporary values in the stack before the call
  • Contents of these registers can be modified as a result of procedure call
• Callee saved register
  • x8~x9 and x18~x27: save registers that must be preserved on a procedure call (if used, the callee saves and restores them)
  • Callee saves temporary values in the stack before using
  • Callee restores them before returning to caller
  • The contents of these register are preserved across a procedure call
• Therefore, sw/lw x5 and x6 is NOT required in the previous example but sw/lw x20 is required



Nest Procedures

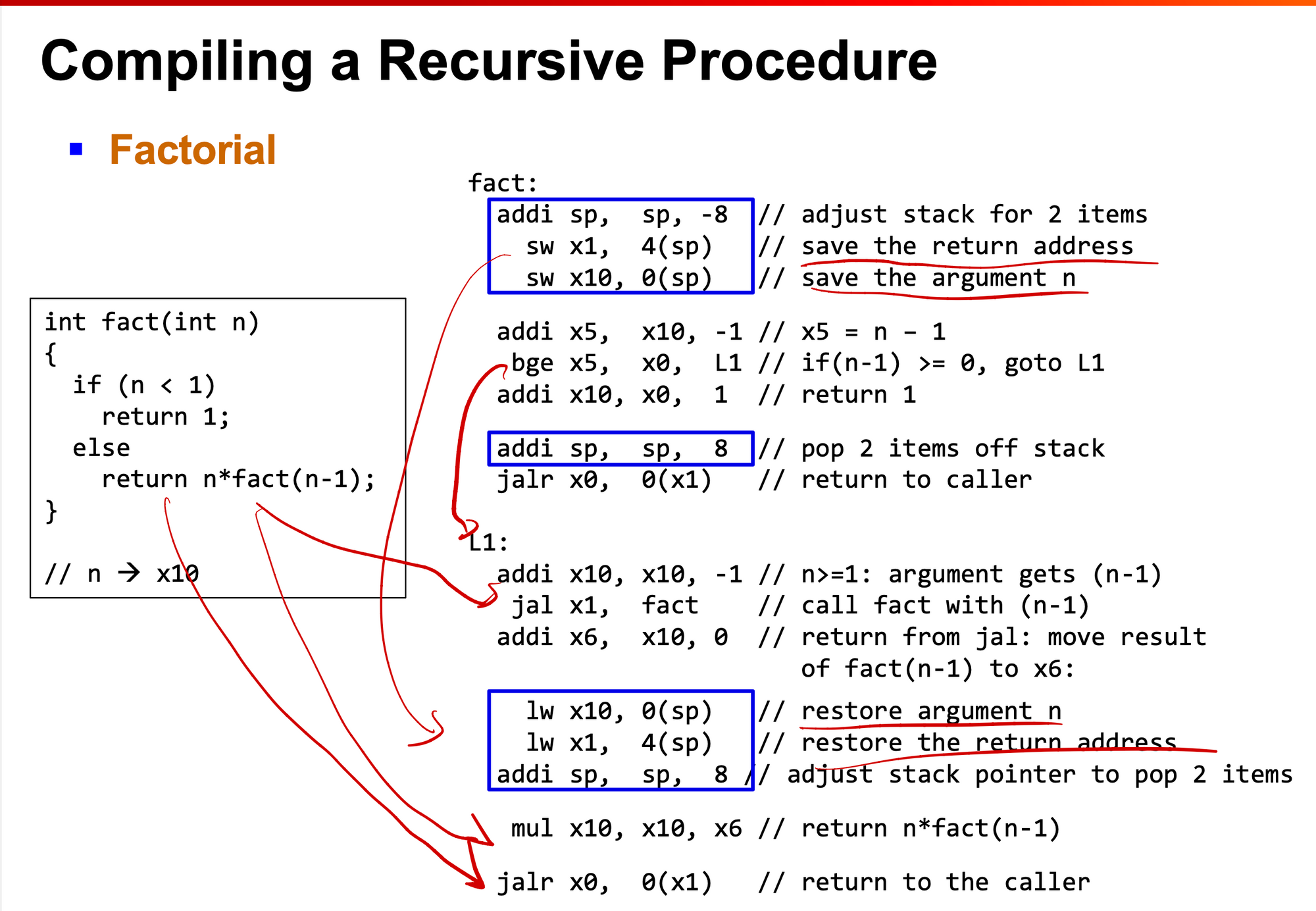

• Leaf procedures do not call others but nonleaf ones do
• For nested call, caller needs to save on the stack
• Restores from the stack after the call
• For example
  • Main program calls A with an argument of 3 → placing 3 in x10 → jal x1, A (오버라이드)
  • A calls B with an argument of 7 → placing 7 in x10 → jal x1, B
  • What happens to x10 and x1 (i.e., return address?)
• One solution is to push all the other registers that must be preserved on the stack
  • Caller pushes x10~x17 (i.e., argument register), x5~x7 and x28~x31
  • Callee does x1 (i.e., return address register), x8~x9, and x18~x27



Allocating Space for New Data on the Stack

• The stack is also used to store variables that are local to the procedure, such as local arrays and structures
• The segment of the stack containing the saved registers and local variables is called a procedure frame or activation record
• A frame pointer (fp, or x8) points to the first word of the frame of a procedure

Allocating Space for New Data on the Heap

• The RISC-V convention for allocation of memory
  • Text: the home of the RISC-V machine code
  • Static data: the place for constants and other static variables
  • Heap (Dynamic data): the place for dynamically allocated memory and
    • ex) linked list, tree → malloc()/free() in C
  • Stack: the place for local variables and register savings
  • Stack and heap grow towards each other to maximize storage use before collision



Wide Immediate Operands

• Although constants are frequently short and fit into the 12-bit field, sometimes they are bigger
  • RISC-V instruction set includes the instruction load upper immediate (lui: U-type) to load a 20-bit constant into bits 12 through 31 of a register
  • The rightmost 12 bits are filled with zeros
• An example to load the following 32-bit constant into x19



Addressing in Branches

• RISC-V branch instructions uses the SB-type format
  • This format can represent branch addresses from -4096 to 4094, in multiples of 2 → only possible to branch to even address
  • Example (opcode : 1100011, funct3 code: 001 for bne)

• The unconditional jump-and-link instruction (jal) is the instruction that uses the UJ-type format
  • 20-bit address immediate → larger range
  • Example (opcode: 1101111 for jal)
